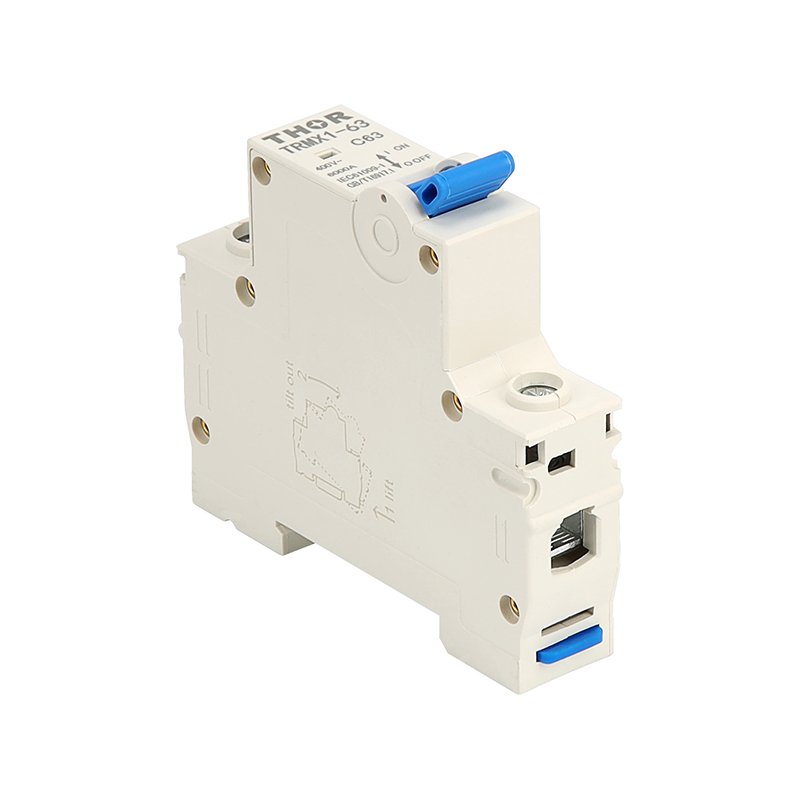

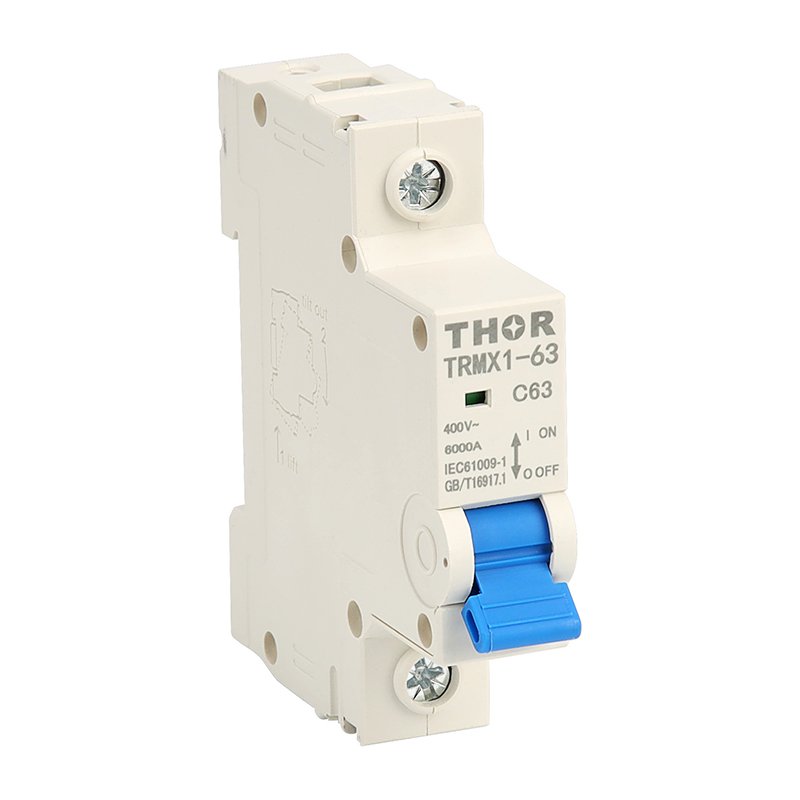

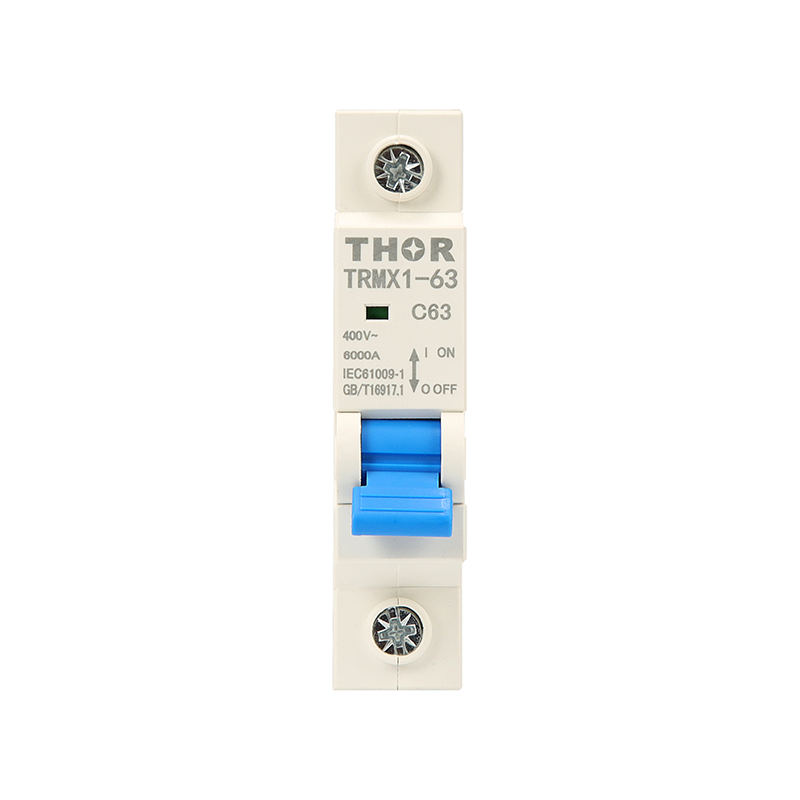

AC MCB TRMX1-63A 1P

TRMX1-63 miniature circuit breaker, suitable for lighting distribution systems (Type C) or motor distribution systems (Type D) . Beautiful and compact appearance , light weight , excellent and reliable performance , high breaking capacity, quick release , guide rail installation , shell and components made of high ﬂame retardant and impact resistant plastic , with a long service life . It is mainly used for overload and short circuit protection in AC 50Hz/60Hz , single-phase 230V/400V, second , third , and fourth pole 400V, current up to 63A , and can also be used to frequently turn on and oﬀ electrical devices and lighting circuits under normal circumstances .

Parameter

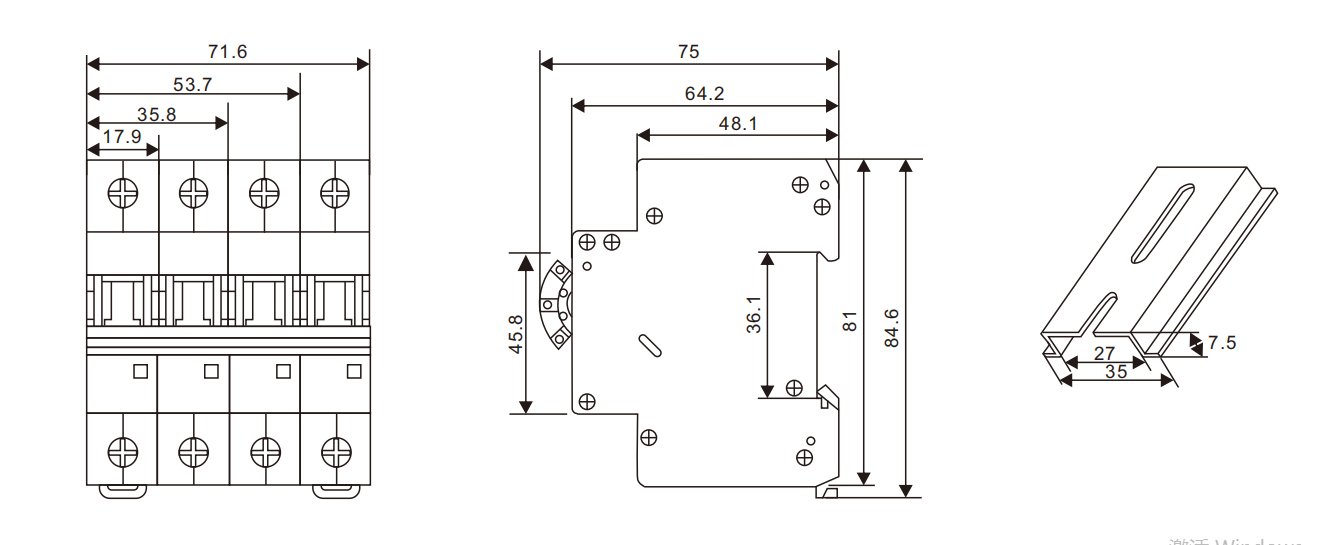

Dimension

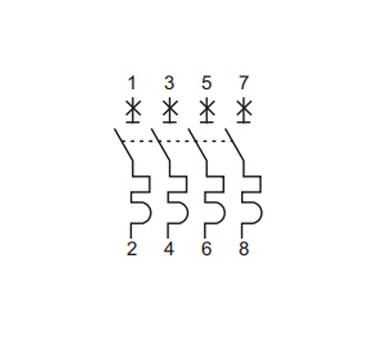

Circuit Diagram

Main

Product or component type	Miniature circuit-breaker
Device application	Distribution
Poles description	1P/2P/3P/4P
Number of protected poles	1/2/3/4
Network type	AC
Trip unit technology	Thermal-magnetic
Curve code	C
Breaking capacity	6kA

Complementary

rated operational voltage (Ue)		1P:230/400V; 2P/3P/4P: 400V
Control type		Toggle
Local signalling		ON/OFF indication
Mounting mode		Clip-on
Mounting support		DIN rail 35mm
Colour		Grey
Endurance (O-C)	Electrical	10,000 cydes
	Mechanical durability	20,000 cycles

Environment

Standards	IEC 60947-2
IP degree of protection	IP40 for modular enclosure conforming to IEC 60529
IP degree of protection	IP20 conforming to IEC 60529
Operating altitude	2000m
Ambient air temperature for operation	-35°C to +70°C
Ambient air temperature for storage	-40°C to +85°C

Connection

Rating	Tightening torque	Copper cables
		Rigid	Flexible or ferrule
1 to 25 A	2 N . m	1 to 25 mm2	1 to 16 mm2
32 to 63 A	2.5 N . m	1 to 35 mm2	1 to 25 mm2

Product numbers

Type			Width 9 mm modules
1P/2P/3P/4P	Rating(ln)	C Curve	2
	1A	TRMX1-63/1/C1
	3A	TRMX1-63/1/C3
	5A	TRMX1-63/1/C5
	6A	TRMX1-63/1/C6
	10A	TRMX1-63/1/
	16A	C10TRMX1-63/1/
	20A	C16TRMX1-63/1/
	25A	C20TRMX1-63/1/
	32A	C25TRMX1-63/1/
	40A	C32TRMX1-63/1/
	50A	C40TRMX1-63/1/
	63A	C50TRMX1-63/1/
