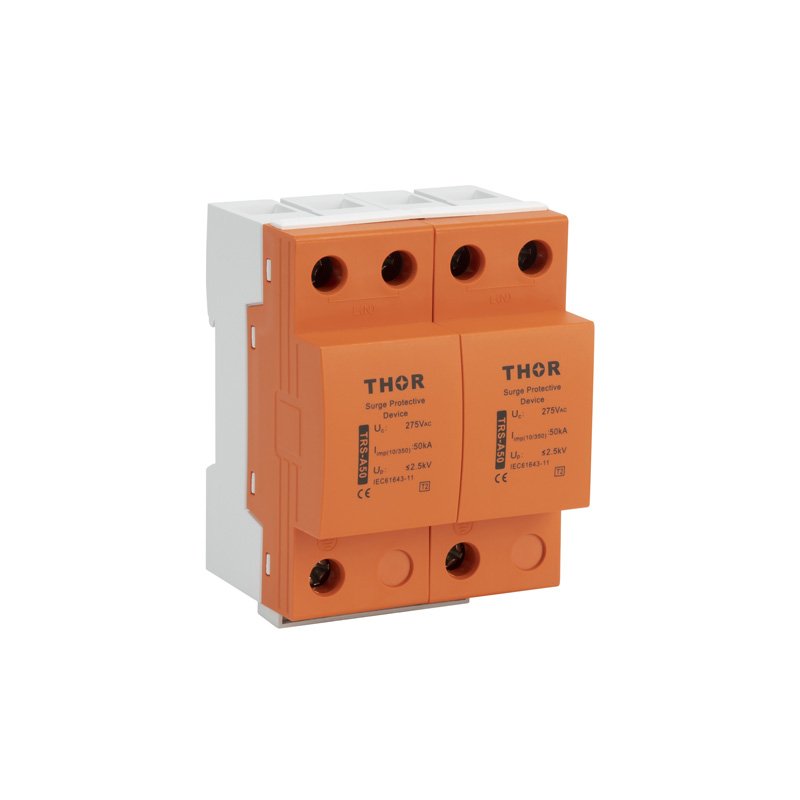

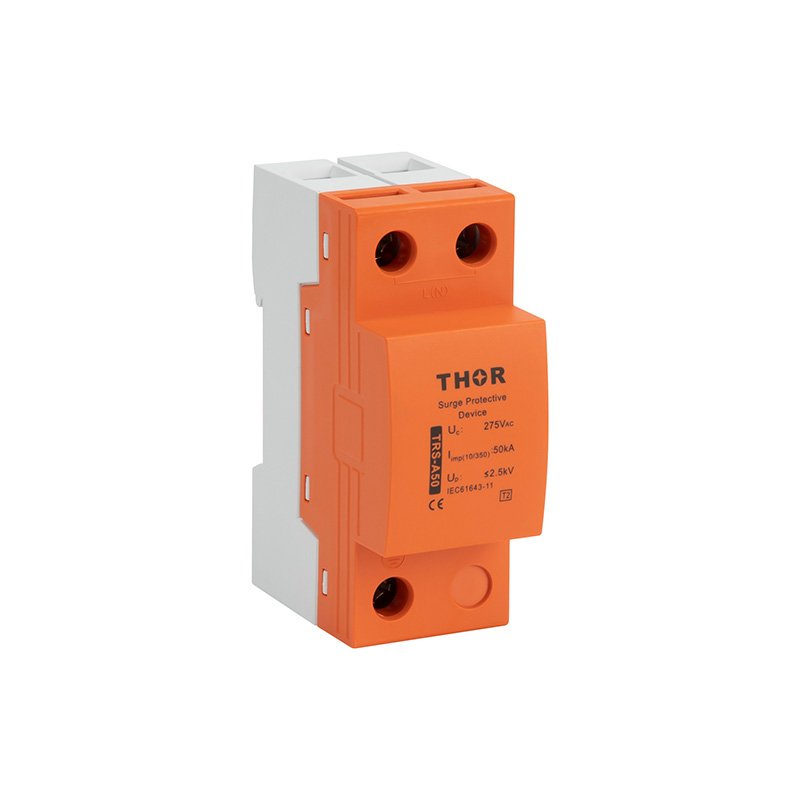

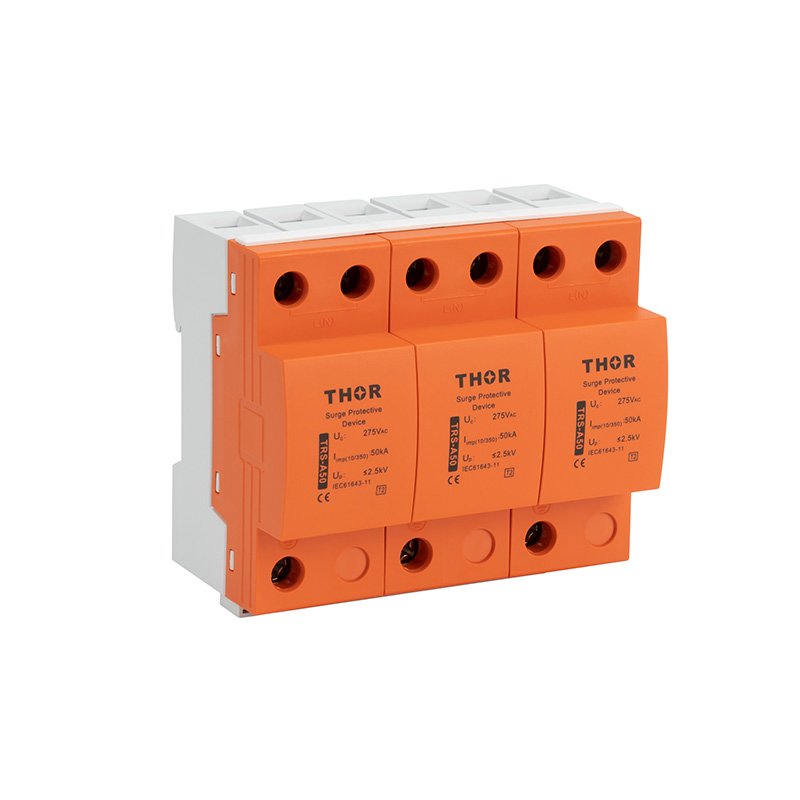

| Parameter/Type | TRS-A15 | TRS-A25 | TRS-A50 |
| Nominal volatge Un | 230 V AC | ||
| Maximum operating voltage Uc | 275 V AC | ||
| Lightning impulse current (10/350 μs) Iimp | 15 kA | 25 kA | 50 kA |
| Voltage protection level Up | ≤ 2,0 kV | ≤ 2,2 kV | ≤ 2,5 kV |
| Insulation resistance group | > 100 mΩ | ||
| Response time | <100ns | ||
| Cross-section of connected conductors solid (min/max) | 16 mm2 / 35 mm2 | ||
| Cross-section of connected conductors stranded (min/max) | 16 mm2 / 35 mm2 | ||
| Fault indication | — | ||
| Degree of protection | IP20 | ||
| Range of operating temperatures (min/max) | -40℃~+70℃ | ||
| Humidity range | 5%~95% | ||
| Mounting | DIN rail 35 mm | ||
| According to standard | EN 61643-11:2012, IEC 61643-11:2011 / T1 | ||
| Remarks | Other Uc can be customized.(420V AC, 385V AC, 320V AC, etc.) | ||
