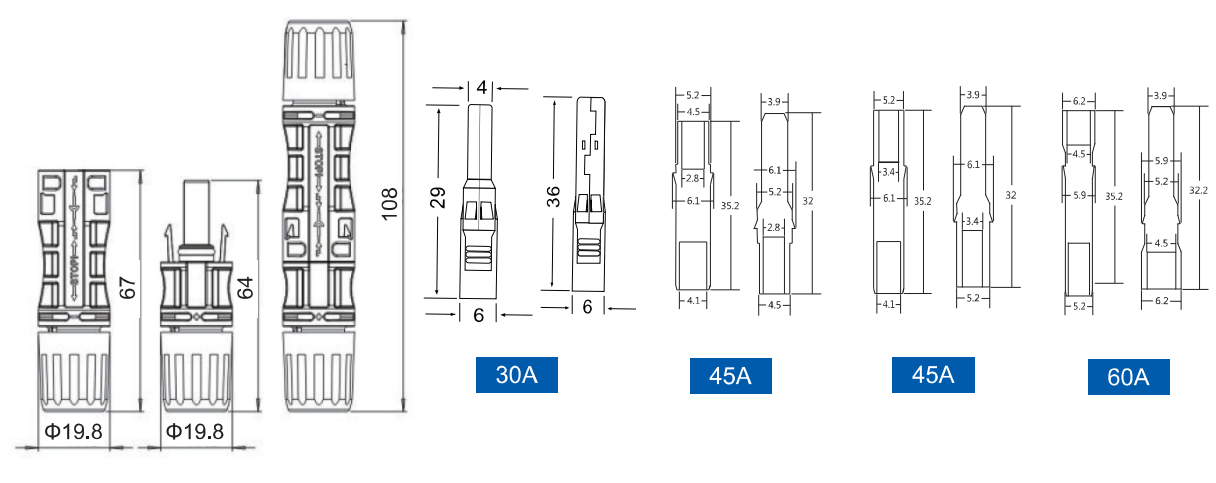

| Model | MC4-1500V | ||
| Metal plug system | Ф2.5mm Ф4mm Ф6mm | ||
| Rated voltage | 1500V DC | ||
| Rated current | 30A(2.5mm²,4mm²,6mm²;14AWG,12AWG,10AWG)
45A(4mm²;6mm² ;12AWG,10AWG) 60A(10mm²;8AWG) 80A(16mm²;7AWG) |
||
| Test voltage | 6kV(50HZ，1min.) | ||
| ambient temperature range | -40°C…+85°C(IEC) -40°F…+194°F(UL) | ||
| upper temperature limit | +105°C(ICE) | ||
| Protection level | IP67 | ||
| Touch protection , unmated state | IP2X | ||
| Connector contact resistance | 0.5mΩ | ||
| Security Level | II | ||
| Terminal material | Tinned copper/silvered copper | ||
| Insulation Materials | PC/PPO | ||
| locking system | Snap-in | ||
| Flammability rating | UL-94-Vo | ||
| Corrosion test level | IEC 60068-2-52 | ||
