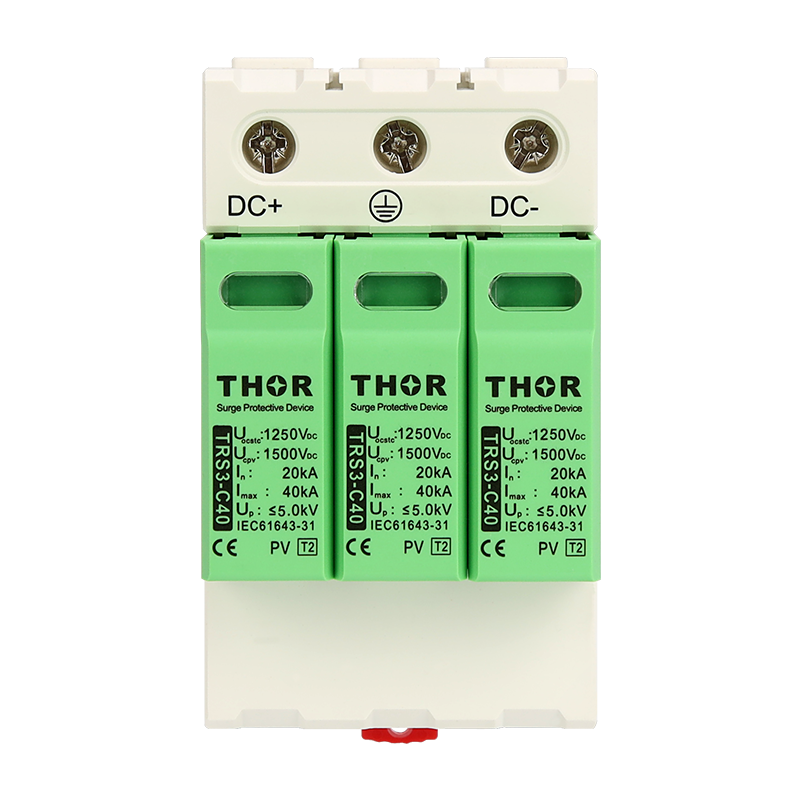

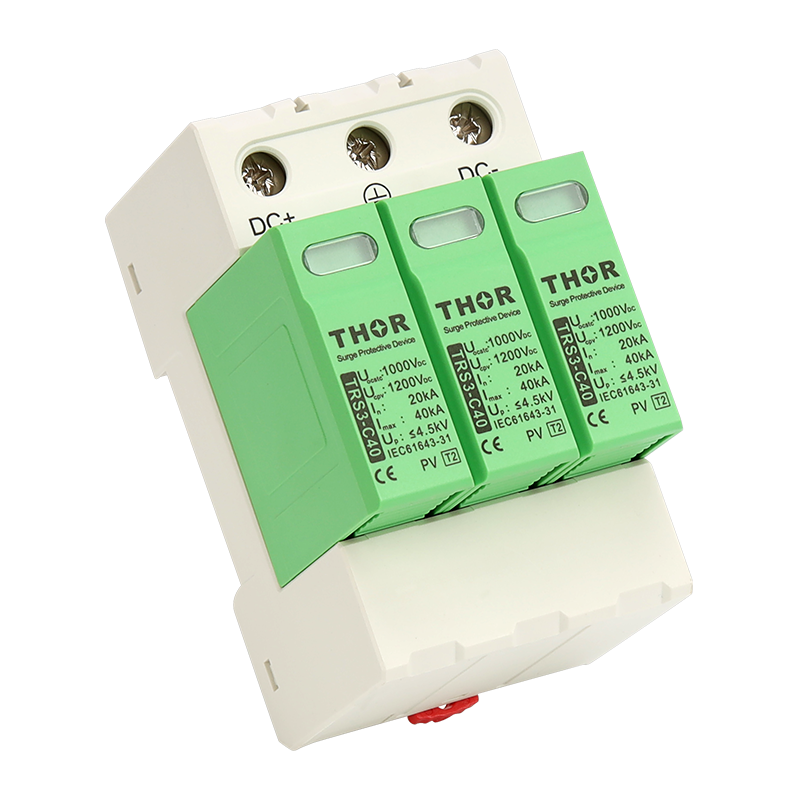

| Model | TRS3-C40 | ||||
| Maximum operating voltage mode +/-, +/PE, -/PE UCPV |
500 V DC | 600 V DC | 800 V DC | 1000 V DC | 1500 V DC |
| Nominal discharge current (8/20μs) (In) | 20 kA | ||||
| Maximum discharge current (8/20μs) (Imax) | 40 kA | ||||
| Voltage protection level mode +/PE, -/PE (Up) | ≤ 2,0 kV | ≤ 2,3 kV | ≤ 3,6 kV | ≤ 4,0 kV | ≤ 5,2 kV |
| Short-circuit current rating (ISCPV) | 100 A DC | ||||
| Response time (ta) | < 25ns | ||||
| Cross-section of connected conductors solid (min/max) | 16 mm2 / 35 mm2 | ||||
| Cross-section of connected conductors stranded (min/max) | 16 mm2 / 35 mm2 | ||||
| Fault indication | red indication field | ||||

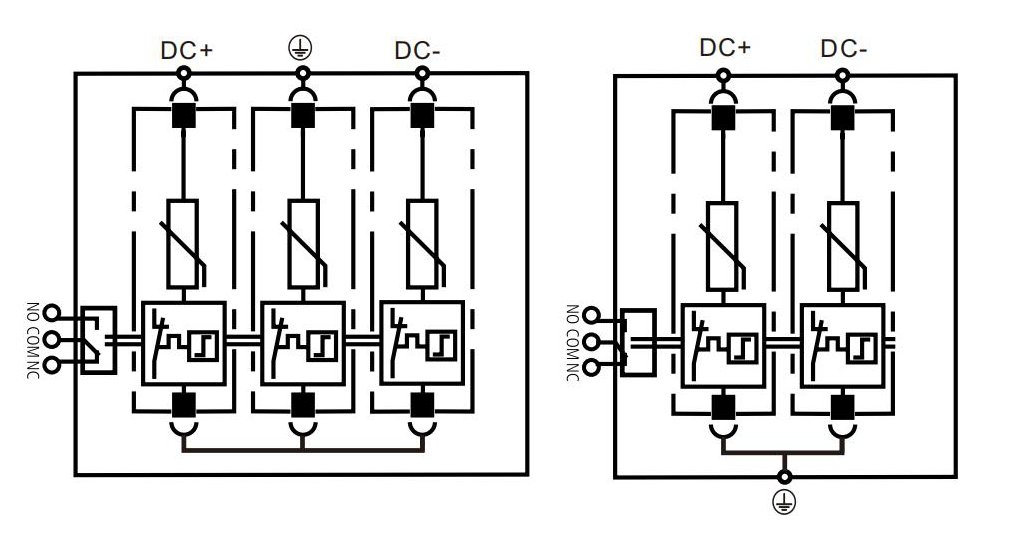

| Remote indication | potential-free change-over contact | ||||
| Remote indication contacts | 250 V / 0,5 A AC, 250 V / 0,1 A DC | ||||
| Cross-section of remote indication conductors | 1,5 mm2 | ||||
| Degree of protection | IP20 | ||||
| Range of operating temperatures (min/max) | -40℃~+70℃ | ||||
| Humidity range | 5%~95% | ||||

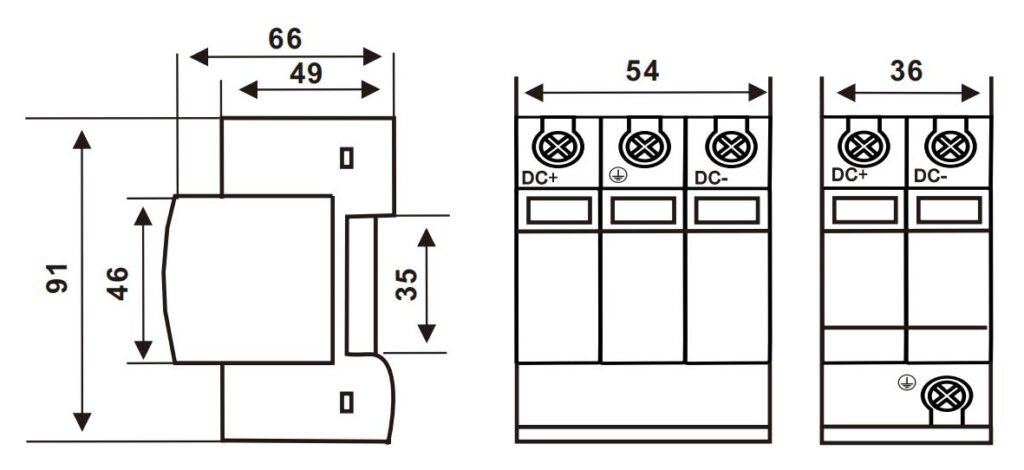

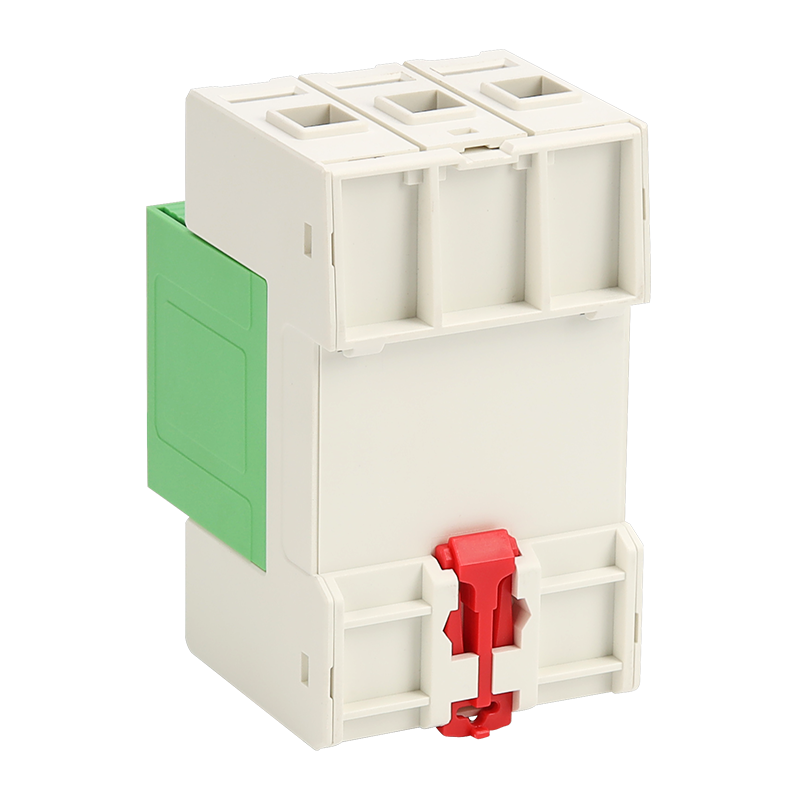

| Mounting | DIN rail 35 mm | ||||
| According to standard | EN 61643-31:2012, IEC 61643-31:2011 / T2 |
||||
| Remarks | Other UCPV can be customized. | ||||
