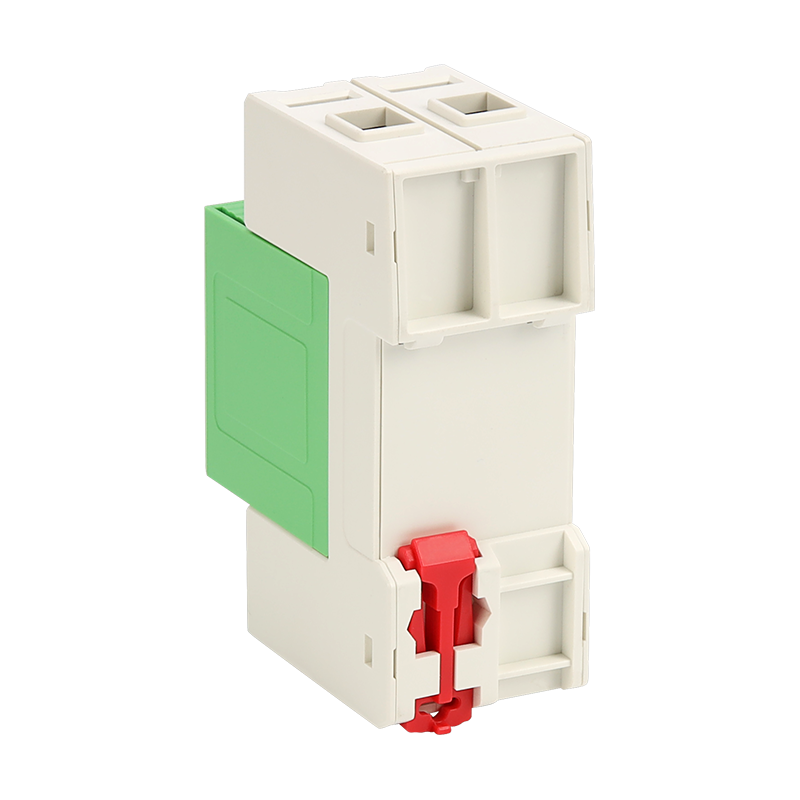

DC SPD T2 TRS3-C40

TRS3 Series SPD

SPD PV type 2 – surge arrester for PV installation
Pluggable module, visual fault signalling, module locking

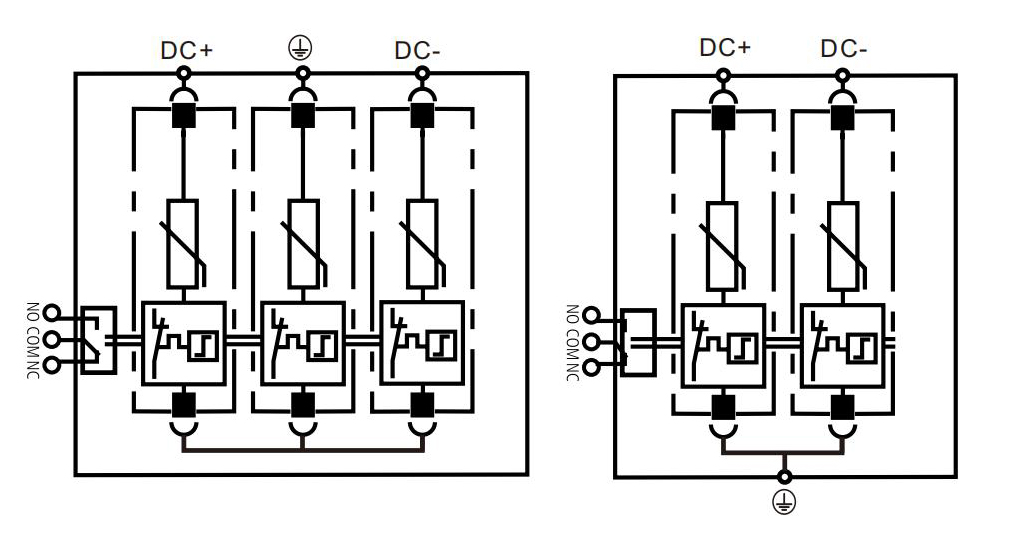

  • Varistor surge arrester
  • Installtion to PV system
  • for protection of PV systems where the separating spark-over distance is kept or without LPS
  • Optional remote fault signalling(S)
Catalogue-Surge Protective Devices
Maximum operating voltage mode
+/-, +/PE, -/PE UCPV
500 V DC600 V DC800 V DC1000 V DC1500 V DC
Nominal discharge current (8/20μs) In20 kA
Maximum discharge current (8/20μs) Imax40 kA
Voltage protection level mode +/PE, -/PE Up≤  2,0 kV≤  2,3 kV≤  3,6 kV≤  4,0 kV≤  5,2 kV
Short-circuit current rating ISCPV100 A DC
Response time ta< 25ns
Cross-section of connected conductors solid (min/max)16 mm2 / 35 mm2
Cross-section of connected conductors stranded (min/max)16 mm2 / 35 mm2
Fault indicationred indication field
Remote indicationpotential-free change-over contact
Remote indication contacts250 V / 0,5 A AC, 250 V / 0,1 A DC
Cross-section of remote indication conductors1,5 mm
Degree of protectionIP20
Range of operating temperatures (min/max)-40℃~+70℃
Humidity range5%~95%
MountingDIN rail 35 mm
According to standardEN 61643-31:2012,
IEC 61643-31:2011 / T2
RemarksOther UCPV can be customized.
