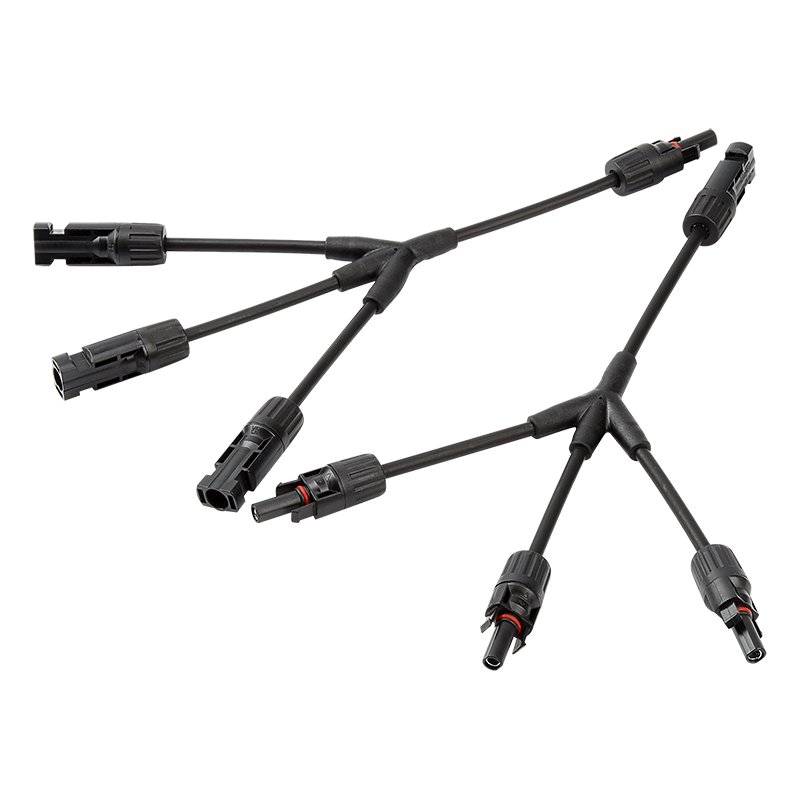

| Model | MC4-Y4 |
| Metal plug system | φ4mm |
| Rated voltage | 1000V DC(IEC) |
| Rated current | 30A |
| Test voltage | 6kV(50HZ,1min.) |
| ambient temperature range | -40℃..+85℃(IEC) -40°F…+194°F(UL) |
| upper temperature limit | +105°℃(IEC) |
| Protection level | IP67 |
| Touch protection,unmated state | IP2X |
| Connector contact resistance | 0.5mΩ |
| Security Level | Ⅱ |
| Terminal material | Tinned copper/silvered copper |
| Insulation Materials | PC/PPO |
| locking system | Snap-in |
| Flammability rating | UL-94-VO |
| Corrosion test level | IEC 60068-2-52 |
