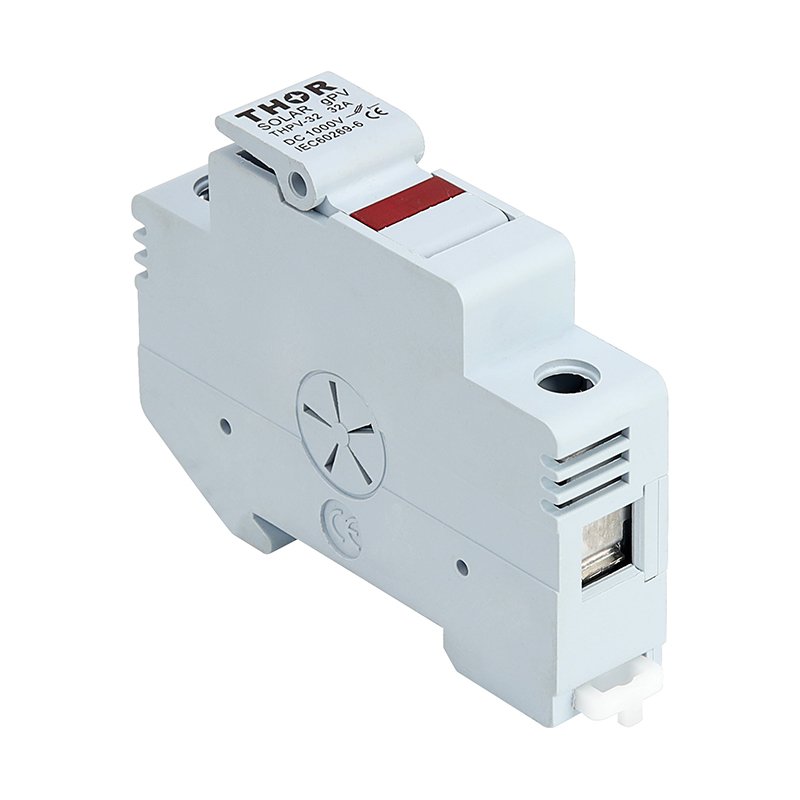

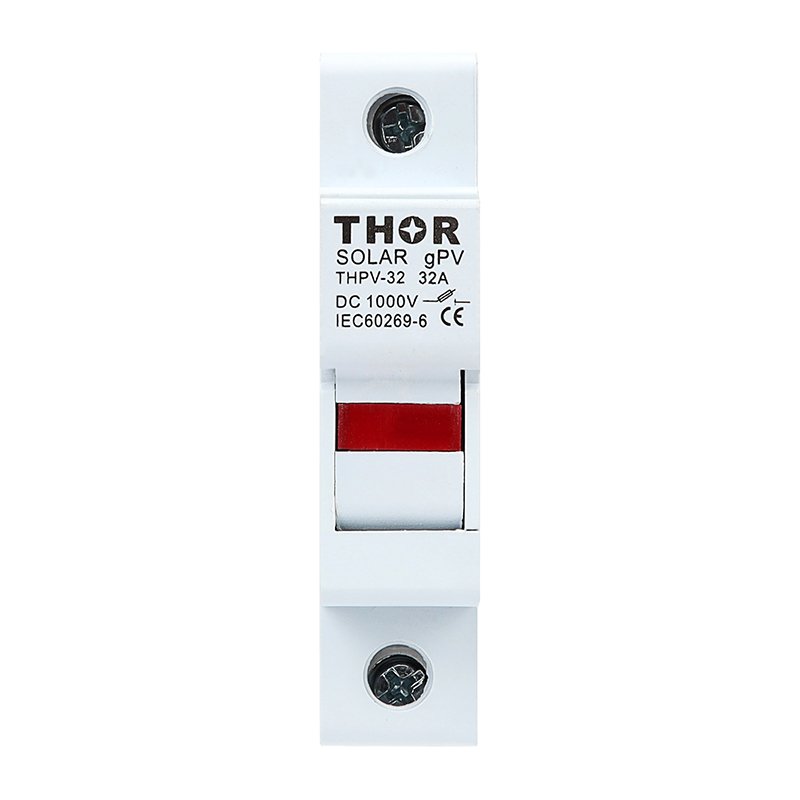

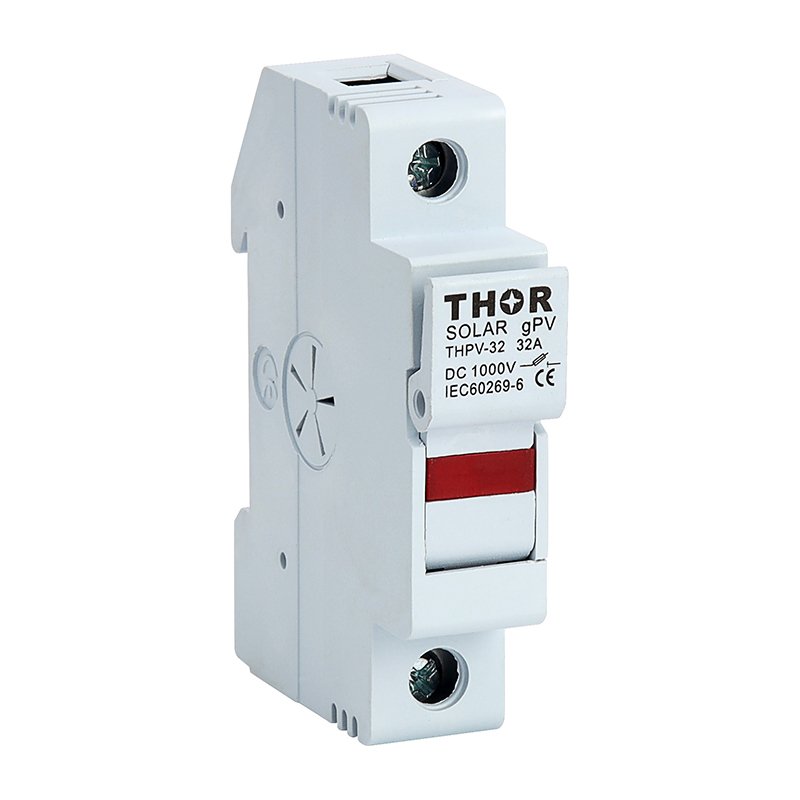

| Specifications |
| Rated voltage:1000Vdc Rated current:30A |
| Standard |
| IEC60269-6 |
| Typical application |
| PV combiner box |
Product parameters
| Product code |
Rated current |
Breaking capacity |
Safety certificate | Fitted with fuse -link model size |
Net weight |
 |
|||||
| THPV-30X | 30A | 1000Vdc | THPV-30 (S ) (φ10 .3×38) mm | 61 .5g |
Note: DENOTES FOR CERTIFICATION APPROVED
PV power distribution network
| shape | size | Fuse Mounting Type | Product number | Rated current | Rated voltage |
|
cylind nical cap |
φ10 .3x38mm |

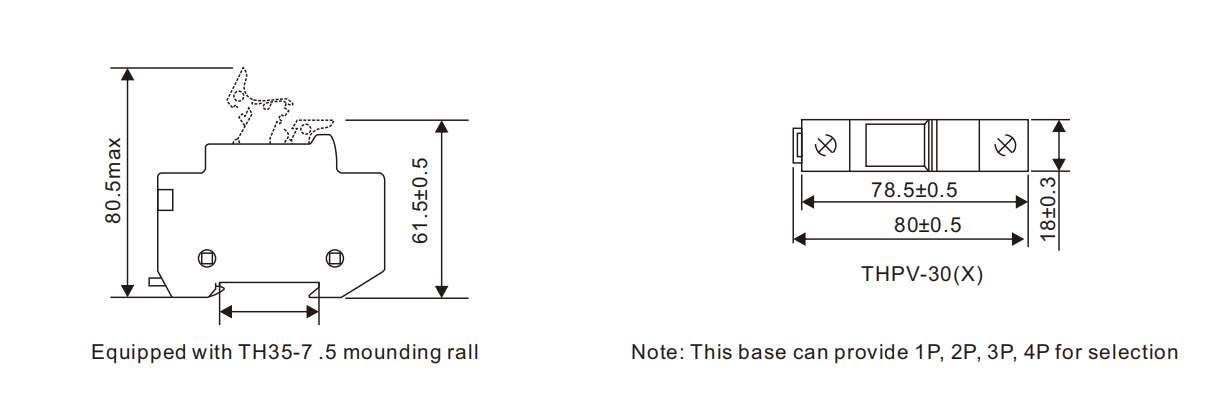

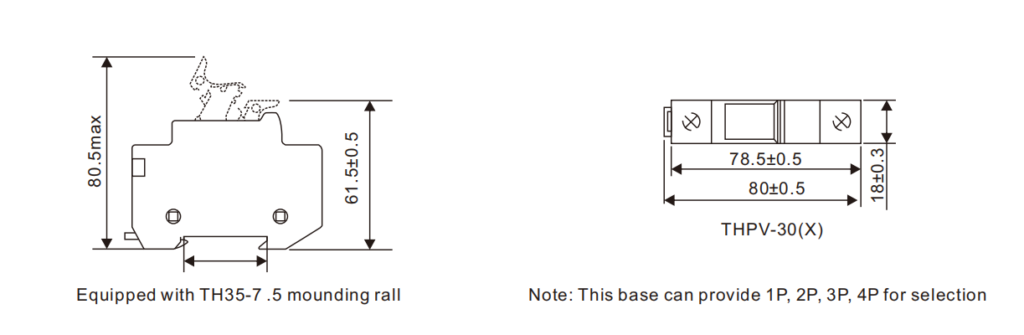

TH35-7 .5 |
THPV-30(S ) |
2 、3 、4 、5 、6 、8 、10 、 12 、15 、20 、25 、30 |
1000Vdc/ 1500Vdc |
| Bolted | |||||
| Printed circuit board (pins) | |||||
| Square tube knife | 1 | Knife contact | THPV-250 | 80 、100 、125 、160 、
200 、250 |
|
| Bolted |
