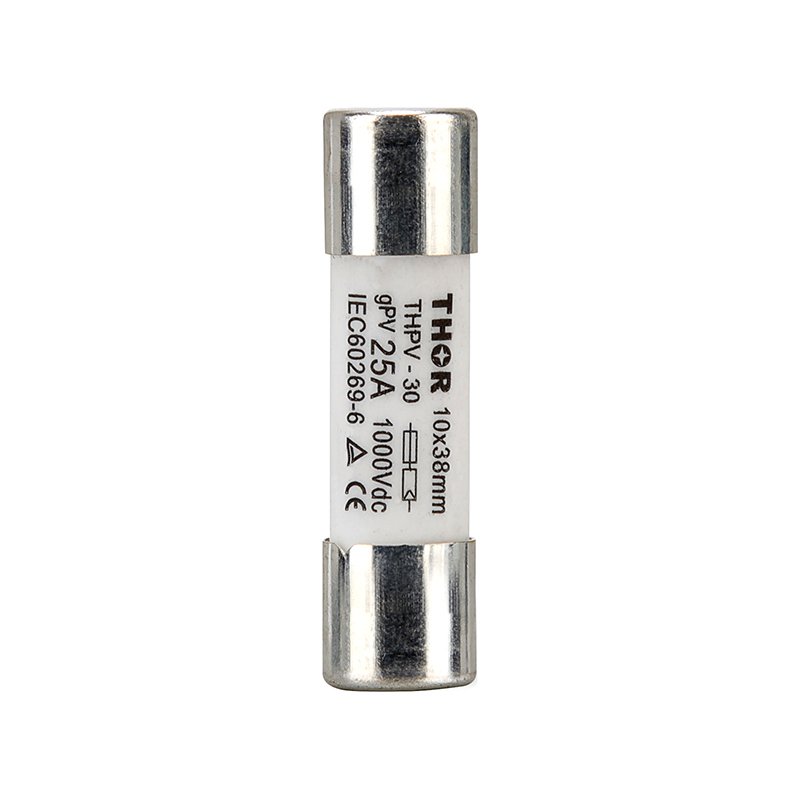

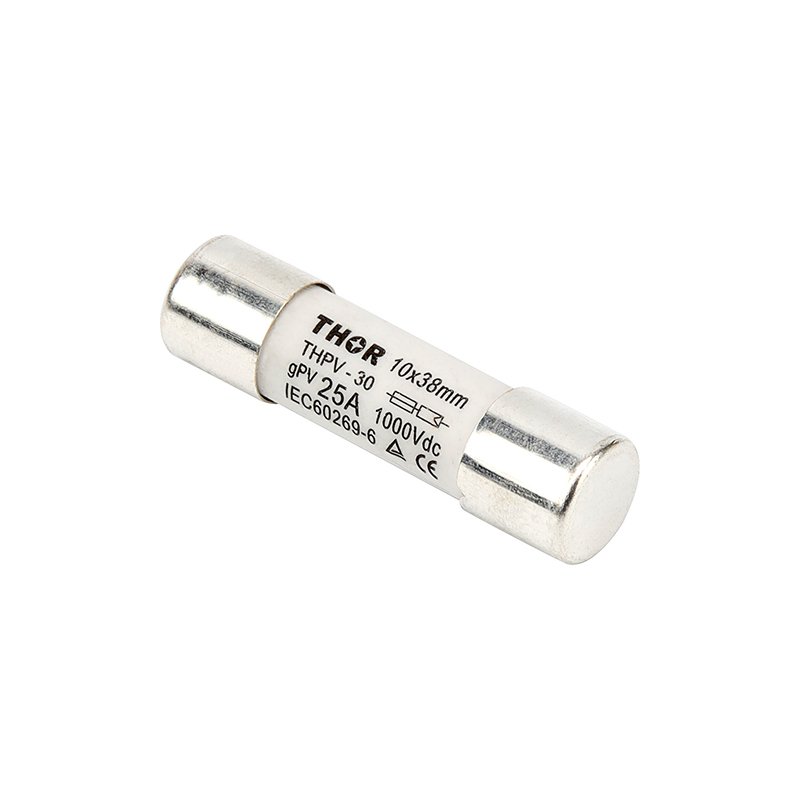

| Specifications | Standard |
| Rated voltage: 1000Vdc
Rated current: 10A~30A Protection categary: Full range protection of PV system |
IEC60269-6 |
| Typical application | Applicable holder & base |
| PV combiner box – Solar PV module protection | THPV-30 (X ) THPV-30 (Clip) |

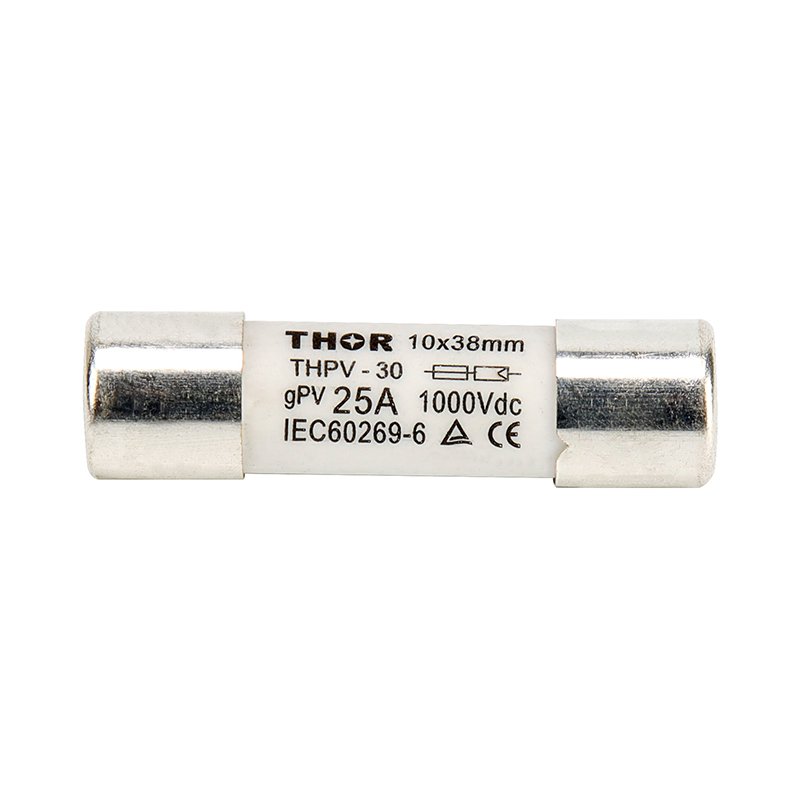

Product parameters
| Product code |
Rated current |
Breaking capacity |
Safety certificate | Power loss
1.0In (W) |
Net weight |
| THPV30/10 | 10A |
20kA |
2 .2 |
10g |
|
| THPV30/12 | 12A | 2 .3 | |||
| THPV30/15 | 15A | 2 .7 | |||
| THPV30/20 | 20A | 3 .2 | |||
| THPV30/25 | 25A | 3 .8 | |||
| THPV30/30 | 30A | 4 .5 |
Time-current characteristic
| Standard:UL248-19 | Standard:IEC60269-6 | |||
| 135% In | 200% In | 113% In | 145% In | |
| < 1h fusing | <240s fusing | <1h non fusing | <1h fusing | |
Note: Subsequent standard updates wll not affect the pertformance and normal use of the product .
PV power distribution network
| shape | size | Fuse Mounting Type | Product number | Rated current | Rated voltage |
|
cylind nical cap |

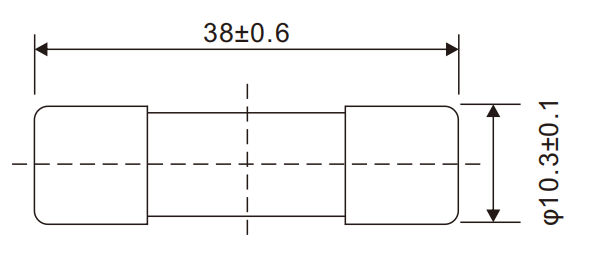

φ10 .3x38mm |
TH35-7 .5 |
THPV-30(S ) |
2 、3 、4 、5 、6 、8 、10 、 12 、15 、20 、25 、30 |
1000Vdc/ 1500Vdc |
| Bolted | |||||
| Printed circuit board (pins) | |||||
| Square tube knife | 1 | Knife contact | THPV-250 | 80 、100 、125 、160 、
200 、250 |
|
| Bolted |
