| Specifications | Standard |
| Rated voltage: 1000Vdc
Rated current: 100A~ 160A Protection categary: Full range protection of PV system |
IEC60269-6 |
| Typical application | Applicable holder & base |
| Protecting the PV combiner box ,
isolating switch and inverter, and breaking thefault overload current generated by the PV array |

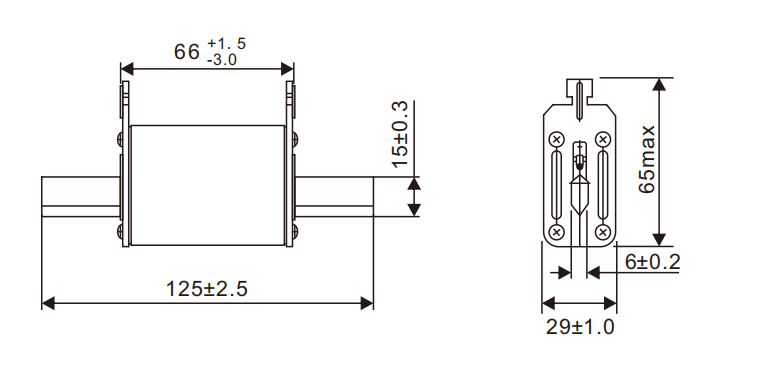

THPV-160 |
Product parameters
| Product code | Rated current | Breaking capacity | Safety certificate | Power loss
1.0In (W) |
Net weight |
 |
|||||
| THPV160/ 100NF | 100A | 1000Vdc | 10 .8 | 0 .275kg | |
| THPV160/ 125NF | 125A | 13 .6 | |||
| THPV160/ 160NF | 160A | 17 .4 |
Note: DENOTES FOR CERTIFICATION APPROVED
PV power distribution network
| shape | size | Fuse Mounting Type | Product number | Rated current | Rated voltage |
|
cylind nical cap |
φ10 .3x38mm |
TH35-7 .5 |
THPV-30(S ) |
2 、3 、4 、5 、6 、8 、10 、 12 、15 、20 、25 、30 |
1000Vdc/ 1500Vdc |
| Bolted | |||||
| Printed circuit board (pins) | |||||
| Square tube knife | 1 | Knife contact | THPV-250 | 80 、100 、125 、160 、
200 、250 |
|
| Bolted |
