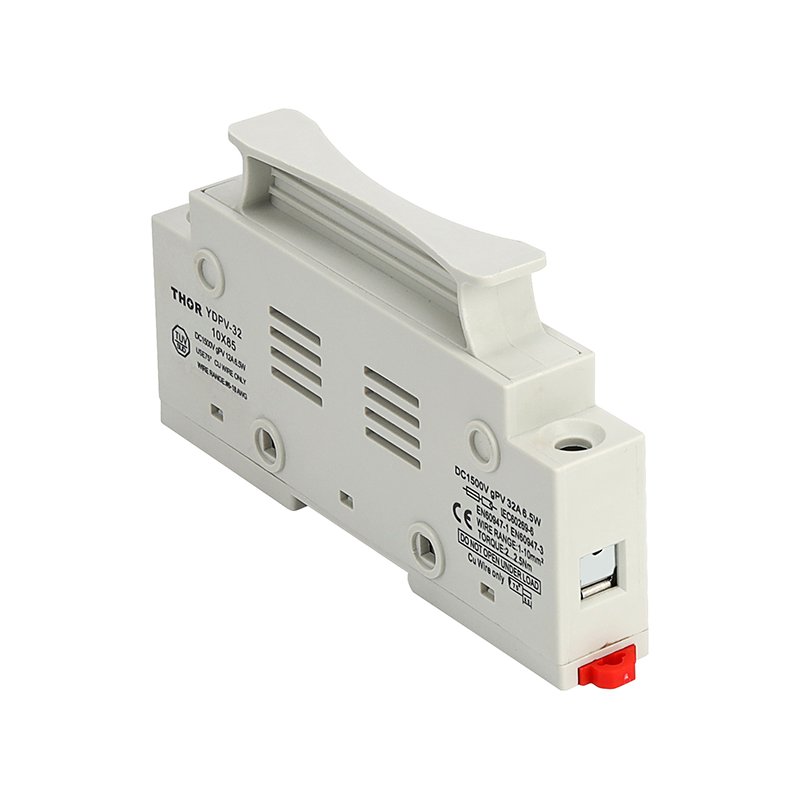

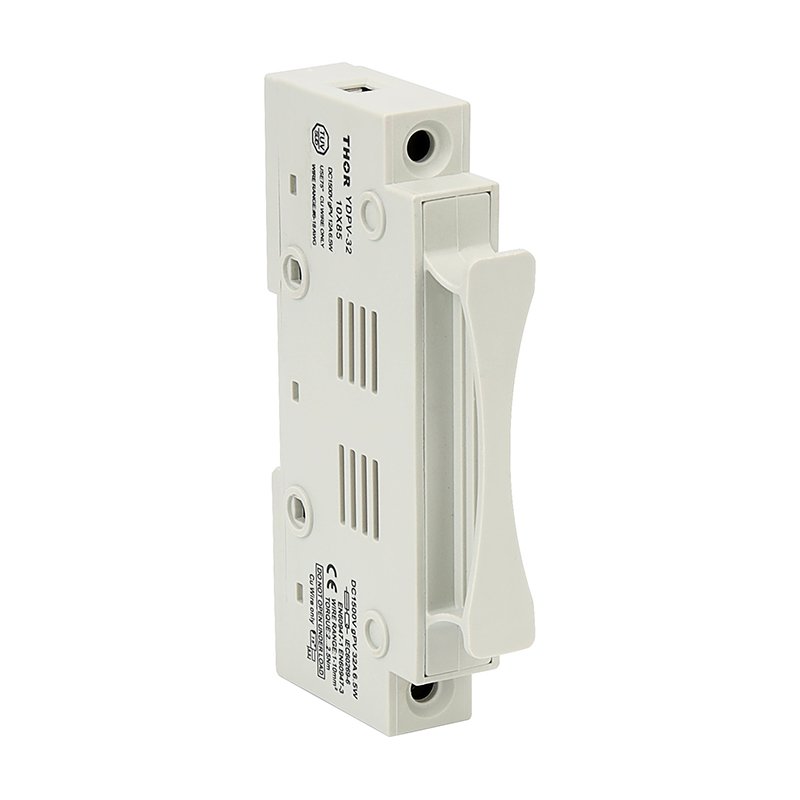

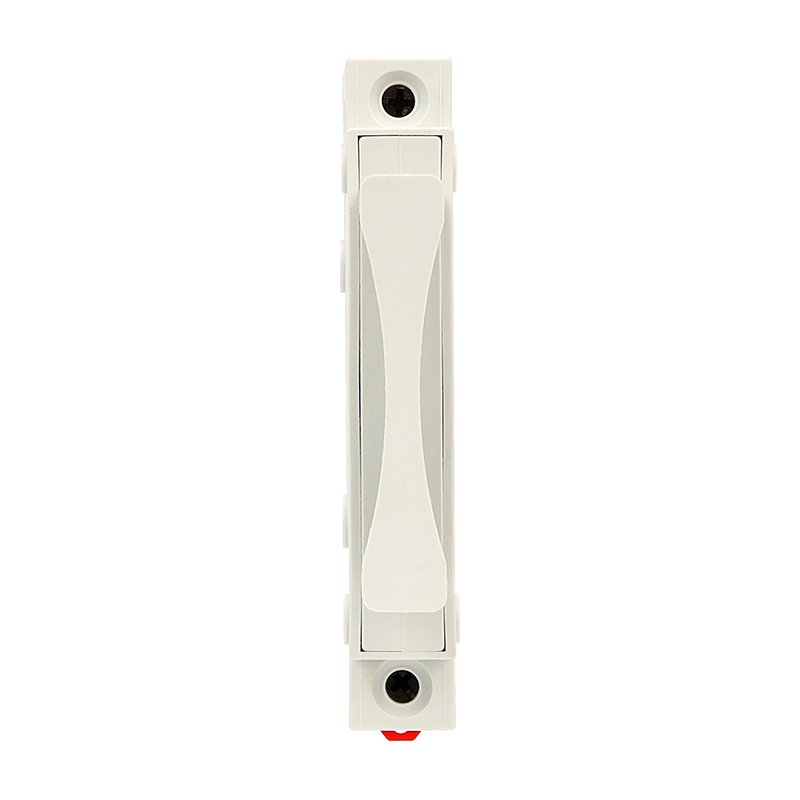

| Specifications |
| Rated voltage:1500Vdc Rated current:30A |
| Standard |
| IEC60269-6 |
| Typical application |
| PV combiner box |
Product parameters
| Product code | Rated current | Breaking capacity | Safety certificate | Fitted with fuse-link model size |
Net weight |
 |
|||||
| THPV-30L | 30A | 40kA | o | THPV-30L (φ10.3×85)mm |
94.5g |

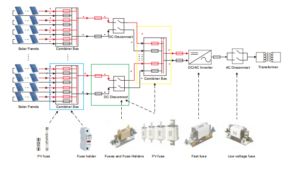

PV power distribution network
| shape | size | Fuse Mounting Type | Product number | Rated current | Rated voltage | |||
| cylindnical cap | φ10.3x38mm | TH35-7.5 | THPV-30(S) | 2、3、4、5、6、8、10、 12、15、20、25、30 |
1000Vdc/1500Vdc | |||
| Bolted | ||||||||
| Printed circuit board(pins) | ||||||||
| Square tube knife | 1 | Knife contact | THPV-250 | 80、100、125、160、 200、250 |
||||
| Bolted | ||||||||
